What is RAG

Retrieval-Augmented Generation (RAG) is a technique that improves AI answers by doing a “similarity search” on company data. In order to perform a similarity search, the source data needs to be converted into embeddings (vectors) first. Peliqan provides a RAG Manager app to create embeddings from source data (e.g. Google Drive files, Notion pages, Github files etc.) and to perform RAG searches. These RAG searches are then used in e.g. an AI Chatbot or an MCP Server.

RAG Manager - create embeddings

The RAG Manager app in Peliqan allows you to configure the automatic scheduled creation of embeddings (vectors) for RAG. The Peliqan data warehouse is used as vector store (using pgvector).

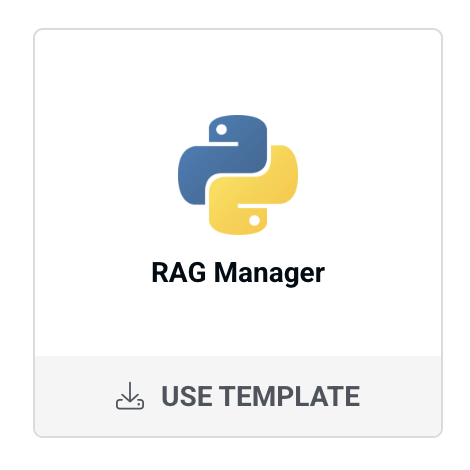

Install the app from the “Rag Manager” tile:

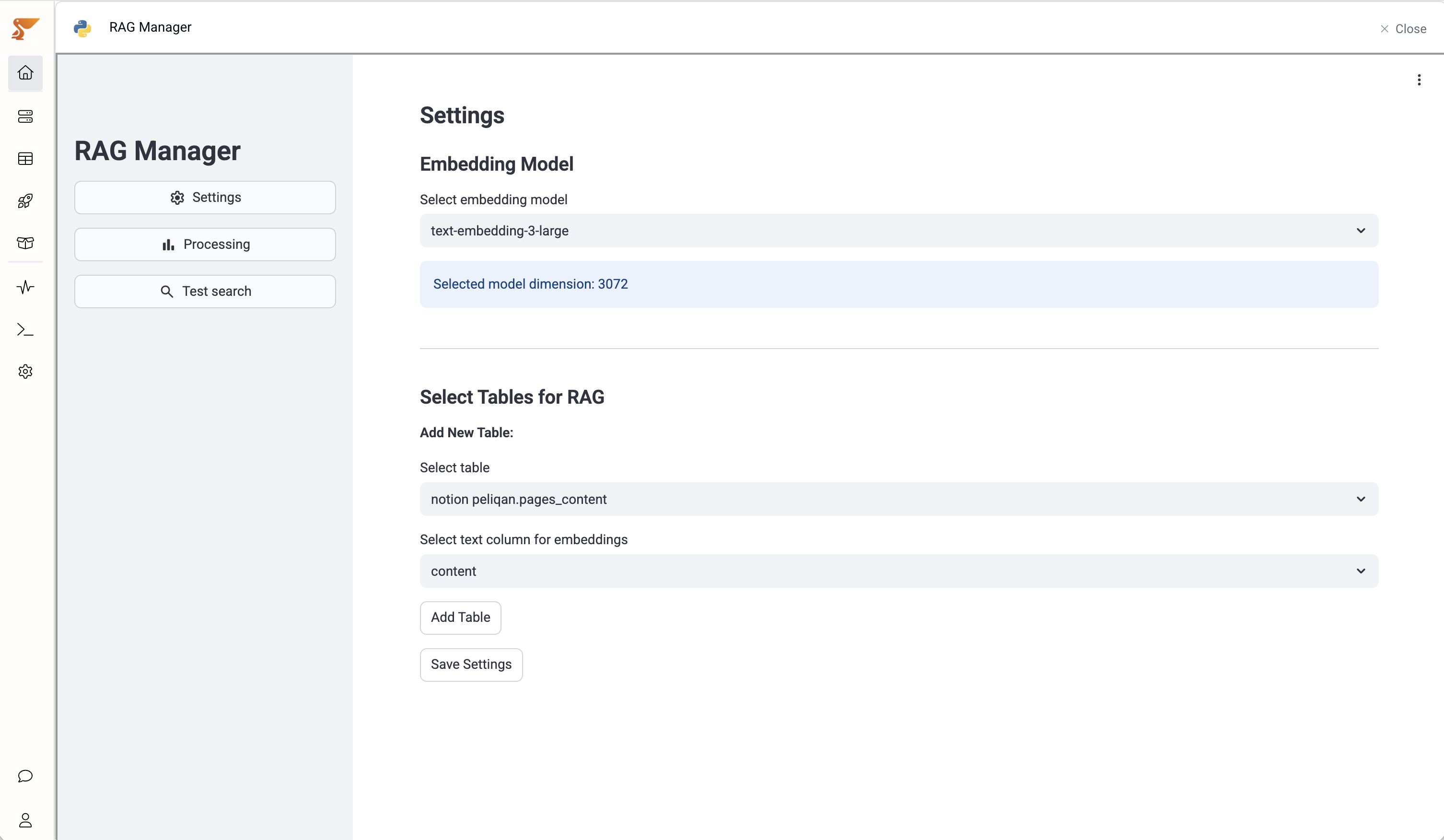

In the app, add one or more source tables under Settings:

Go to Processing and use the Process button to create embeddings.

Add a schedule to the app with e.g. a daily interval, to automatically create embeddings for new and updated rows in the source tables.

RAG data sources

RAG can be used on text sources. Here are examples of Peliqan connectors that are typically used as a source for RAG embeddings:

☝

For some connectors, you need to enable a custom pipeline script to fetch the actual content for each file or item. E.g. for Notion you need a custom pipeline to fetch the contents of each page. For Google Drive and Github you need a custom pipeline to fetch the text content of files. Click on the above connector links for more information.

Performing RAG Search

Example script

Here’s an example Python script to perform a RAG Search in Peliqan:

‣

Click to expand script

import os
import json

search_text = "What is the capital of France?"
model = "text-embedding-3-large"
schema = "your_schema"  # Change to your source schema name
table = "your_table_name"  # Change to your source table name (without 'rag_' prefix)

# Model dimensions
EMBED_MODELS = {
    "text-embedding-3-large": 3072,
    "text-embedding-3-small": 1536
}

dbconn = pq.dbconnect(pq.DW_NAME)
openai_api = pq.connect('OpenAI')
dimension = EMBED_MODELS[model]

def create_embedding(text, model, dimension):
    """Create embedding using OpenAI API"""
    embedding_request = {
        "input": text,
        "model": model,
        "dimensions": dimension
    }
    response = openai_api.get('embeddings', embedding_request)
    embedding = response.get("data", [{}])[0].get("embedding")
    return embedding

def search_rag(search_text, schema, table, model, dimension, top_k=5):
    """Search for similar embeddings"""
    # Create embedding for search text
    search_embedding = create_embedding(search_text, model, dimension)

    if search_embedding:
        embedding_str = "[" + ",".join(map(str, search_embedding)) + "]"
        search_query = f"""
        SELECT id, text, metadata,
            1 - (embedding <#> '{embedding_str}'::vector) AS similarity
        FROM "{schema}"."rag_{table}"
        ORDER BY similarity DESC
        LIMIT {top_k}
        """
        search_result = dbconn.execute(pq.DW_NAME, query=search_query)
        records = search_result["detail"]

        # Convert from list format with headers to list of dicts
        dict_records = []
        if records and len(records) > 0:
            headers = records[0]  # First row contains column names
            for row in records[1:]:  # Skip header row
                record_dict = {}
                for i, header in enumerate(headers):
                    record_dict[header] = row[i]
                dict_records.append(record_dict)
        return dict_records
    else:
        return []

st.write(f"Searching for: '{search_text}' using model {model}, embeddings from source table {schema}.{table} (using rag_{table})")
results = search_rag(search_text, schema, table, model, dimension, top_k=5)
st.write(results)

RAG API handler

Here’s an API handler script that performs RAG search:

‣

Click to expand script.

# Example RAG Search via API calls.
#
# Add this script as an API handler in Peliqan.
# Add an API endpoint of type GET with path "/rag" and link it this script.
# Example usage: GET https://api.eu.peliqan.io/1234/rag?search=What is the capital of France     (1234 = your Peliqan account id)

import json
from urllib.parse import parse_qs

model = "text-embedding-3-large"
schema = "schema_name"  # Change to your source schema name
table = "table_name"  # Change to your source table name (without 'rag_' prefix)

# Model dimensions
EMBED_MODELS = {
    "text-embedding-3-large": 3072,
    "text-embedding-3-small": 1536
}

dbconn = pq.dbconnect(pq.DW_NAME)
openai_api = pq.connect('OpenAI')
dimension = EMBED_MODELS[model]

def create_embedding(text, model, dimension):
    """Create embedding using OpenAI API"""
    embedding_request = {
        "input": text,
        "model": model,
        "dimensions": dimension
    }
    response = openai_api.get('embeddings', embedding_request)
    embedding = response.get("data", [{}])[0].get("embedding")
    return embedding

def search_rag(search_text, schema, table, model, dimension, top_k=5):
    """Search for similar embeddings"""
    # Create embedding for search text
    search_embedding = create_embedding(search_text, model, dimension)

    if search_embedding:
        embedding_str = "[" + ",".join(map(str, search_embedding)) + "]"
        search_query = f"""
        SELECT id, text, metadata,
            1 - (embedding <#> '{embedding_str}'::vector) AS similarity
        FROM "{schema}"."rag_{table}"
        ORDER BY similarity DESC
        LIMIT {top_k}
        """
        search_result = dbconn.execute(pq.DW_NAME, query=search_query)
        records = search_result["detail"]

        # Convert from list format with headers to list of dicts
        dict_records = []
        if records and len(records) > 0:
            headers = records[0]  # First row contains column names
            for row in records[1:]:  # Skip header row
                record_dict = {}
                for i, header in enumerate(headers):
                    record_dict[header] = row[i]
                dict_records.append(record_dict)
        return dict_records
    else:
        return []

def handler(request):

    # Read querystring
    query_string = request['query_string']
    query_string_parsed = parse_qs(query_string)
    search_text = query_string_parsed["search"][0] if "search" in query_string_parsed else None

    results = search_rag(search_text, schema, table, model, dimension, top_k=5)

    # Logging
    print(f"Search: '{search_text}' using model {model}, embeddings from source table {schema}.{table} (using rag_{table})")
    print(results)

    return results

MCP Server with RAG

The Peliqan’s MCP Server template can perform RAG Searches, next to Text-To-SQL.

More info:

RAG in Peliqan's AI Chatbot

The Peliqan’s AI Chatbot app can perform RAG Searches in combination with Text-To-SQL.

More info:

Build AI agents in Peliqan
