Microsoft Outlook is a Personal Information Manager software system from Microsoft, available as a part of the Microsoft 365 software suites. It is mostly preferred email client used to send and receive emails by accessing Microsoft Exchange Server email. Outlook also provides access to contact, email calendar and task management features.

Microsoft Outlook's integration with other Microsoft Office applications such as Excel, Access, Word, PowerPoint, and SharePoint makes it a versatile tool for tasks ranging from accounting to word processing, creating presentations and Sharing files, notes, etc with Individuals and Teams.

This article provides an overview to get started with the Microsoft Outlook connector in Peliqan. Please contact support if you have any additional questions or remarks.

Content

Content
Connecting Microsoft Outlook in Peliqan
Authentication
Microsoft Teams Data Activation
Fetching all Mails
Sending an Email
Sending an E-mail with Attachment
Sending E-mail on Someone’s behalf
Need further help

Connecting Microsoft Outlook in Peliqan

Peliqan connects to Microsoft Outlook performing OAuth flow. Peliqan App is verified by Microsoft and signs in on behalf of the Authenticated User once OAuth flow is completed.

Authentication

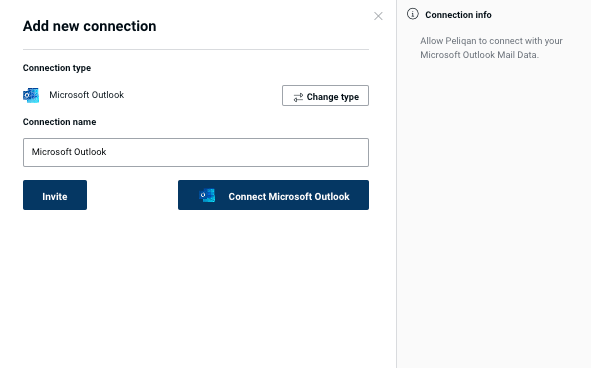

Start the OAuth Connection flow by clicking on ‘Connect Microsoft Outlook’.
If you are signed in with multiple Microsoft accounts on browser, select the Microsoft Outlook account and authenticate yourself by entering credentials.

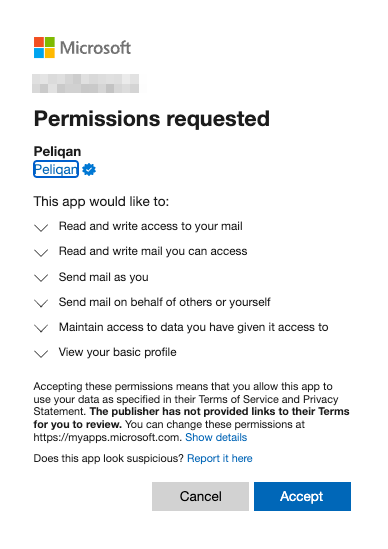

Allow Peliqan app to login on your behalf and access Microsoft Outlook data.

Once OAuth flow is completed, you will be redirected back to Peliqan to perform Writeback operations.

Microsoft Teams Data Activation

Peliqan provides lot of data activation function which enables users to communicate with Microsoft Outlook application through Python Scripts.

Fetching all Mails

Get Mails method allows to fetch metadata of all the mails under the authenticated account.

outlook_api = pq.connect('Microsoft Outlook')
result = True
skip_value = 0
while result:
    mails = { 'skip': skip_value }
    result = outlook_api.get('mails', mails)
    st.json(result)
    skip_value+=100  # increasing by 100 for paged results

By default, metadata of first 100 mails are received, use skip to fetch next 100 result.

Sending an Email

Add Mail method is used to send an E-mail.

outlook_api = pq.connect('Microsoft Outlook')
mail = {
    "message":{
        "subject" : "Sample Subject",
        "body" : {
            "contentType" : "HTML",
            "content" : "Hi Dev,<br> <p style='bgcolor:red'> Spaming you again, only testing :P Sample content testing the process of sending E-mail. let me know if it works./p>"
        },
        "toRecipients" : [
            {
                "emailAddress" : {
                    "address" : "receiver@peliqan.io"
                }
            }
        ],
        "ccRecipients" : [
            {
                "emailAddress" : {
                    "address" : "hello@peliqan.io"
                }
            }
        ]
    },
    "saveToSentItems" : True
}
result = outlook_api.add('mail', mail)
st.json(result)

Sending an E-mail with Attachment

Add Mail with Attachment method is used to send an E-mail adding any file/document along with E-mail

outlook_api = pq.connect('Microsoft Outlook')
mail_with_attachment = {
    'message': {
    "subject": "Meet for lunch?",
    "body": {
      "contentType": "Text",
      "content": "The new cafeteria is open."
    },
    "toRecipients": [
      {
        "emailAddress": {
          "address": "meganb@contoso.com"
        }
      }
    ],
    "attachments": [
      {
        "@odata.type": "#microsoft.graph.fileAttachment",
        "name": "attachment.txt",
        "contentType": "text/plain",
        "contentBytes": "SGVsbG8gV29ybGQh" # base64 encoded bytes
      },
      {
        "@odata.type": "#microsoft.graph.fileAttachment",
        "name": "attach.png",
        "contentType": "image/png",
        "contentBytes": "SGVjkkk394odood"
      }
    ]
  },
  'saveToSentItems': True,
}
result = outlook_api.add('mail_with_attachment', mail_with_attachment)
st.json(result)

↘️ Please find below an example code sharing a text file through E-mail using Peliqan.

Streamlit is used to upload the file from local computer. One can also fetch reports from any source and send it directly Peliqan.

# Required Imports
import base64

# Required Connections
outlook_api = pq.connect('Microsoft Outlook')

# Required Inputs
base64_attachment_data = None
uploaded_file = None

uploaded_file = st.file_uploader("Upload file - ", type=['txt'])
if uploaded_file:
    bytes_data = uploaded_file.getvalue()
    # Convert bytes to base64
    base64_attachment_data = base64.b64encode(bytes_data).decode('utf-8')

    mail_with_attachment = {
        'message': {
            'body': {
                'content': "Hi Peliqan, Hope you are doing good.",
                'contentType': "HTML",
            },
            'subject': "Sample Subject",
            'toRecipients': [
			            {'emailAddress': {
						            'address': 'peliqandev@outlook.com'
						            }
						      }],
            'attachments': [
                {
                    'name': 'sample_attach.txt',
                    '@odata.type': '#microsoft.graph.fileAttachment',
                    'contentType': 'text/plain',
                    'contentBytes': base64_attachment_data
                }
            ]
        },
        'saveToSentItems': True,
    }
    result = outlook_api.add('mail_with_attachment', mail_with_attachment)
    st.json(result)

Sending E-mail on Someone’s behalf

Exchange Online provides mailbox permisions that allow a user to send mail that appears to be sent from another user, distribution list, group, resource, or shared mailbox. With Peliqan’s, Add Mail On Behalf method, user can send an E-mail on behalf of another user or through a shared Mailbox.

💡

This feature is only available for Microsoft Work or Enterprise Accounts, not for personal account.

💡

User trying to imposter another user must have delegated rights provided by the person on whose behalf mail is being sent

Steps Global Administrator can follow to provide delegate Mailbox permissions to another user :

Go to the Microsoft 365 admin center
Go to Users > Active users.
Select the user (e.g., the manager) you want to grant permission to.
Go to Mail > Manage mailbox permissions.
In the "Send on behalf" section, click Edit.
Add the delegate's email address ( address of the person whom you want to send e-mail on your behalf ).

Below is the script to send E-mail on someone’s behalf :

outlook_api = pq.connect('Microsoft Outlook')
mail_on_behalf = {
    'message': {
    "subject": "Sample Subject",
    "body": {
      "contentType": "Text",
      "content": "Testing for sending mail on behalf of another user"
    },
    "toRecipients": [
      {
        "emailAddress": {
          "address": "hello@example.com"
        }
      }
    ],
    "from": {
      "emailAddress": {
        "address": "sender@example.com"
      }
    }
  },
    'saveToSentItems': True,
}
result = outlook_api.add('mail_on_behalf', mail_on_behalf)
st.json(result)

Need further help

Please contact our support for any further assistance via support@peliqan.io.
