Microsoft Excel 365 - Getting started in Peliqan

Microsoft Excel 365 - Getting started in Peliqan

This article provides an overview to get started with the Microsoft Excel connector in Peliqan. Please contact support if you have any additional questions or remarks.

Contents

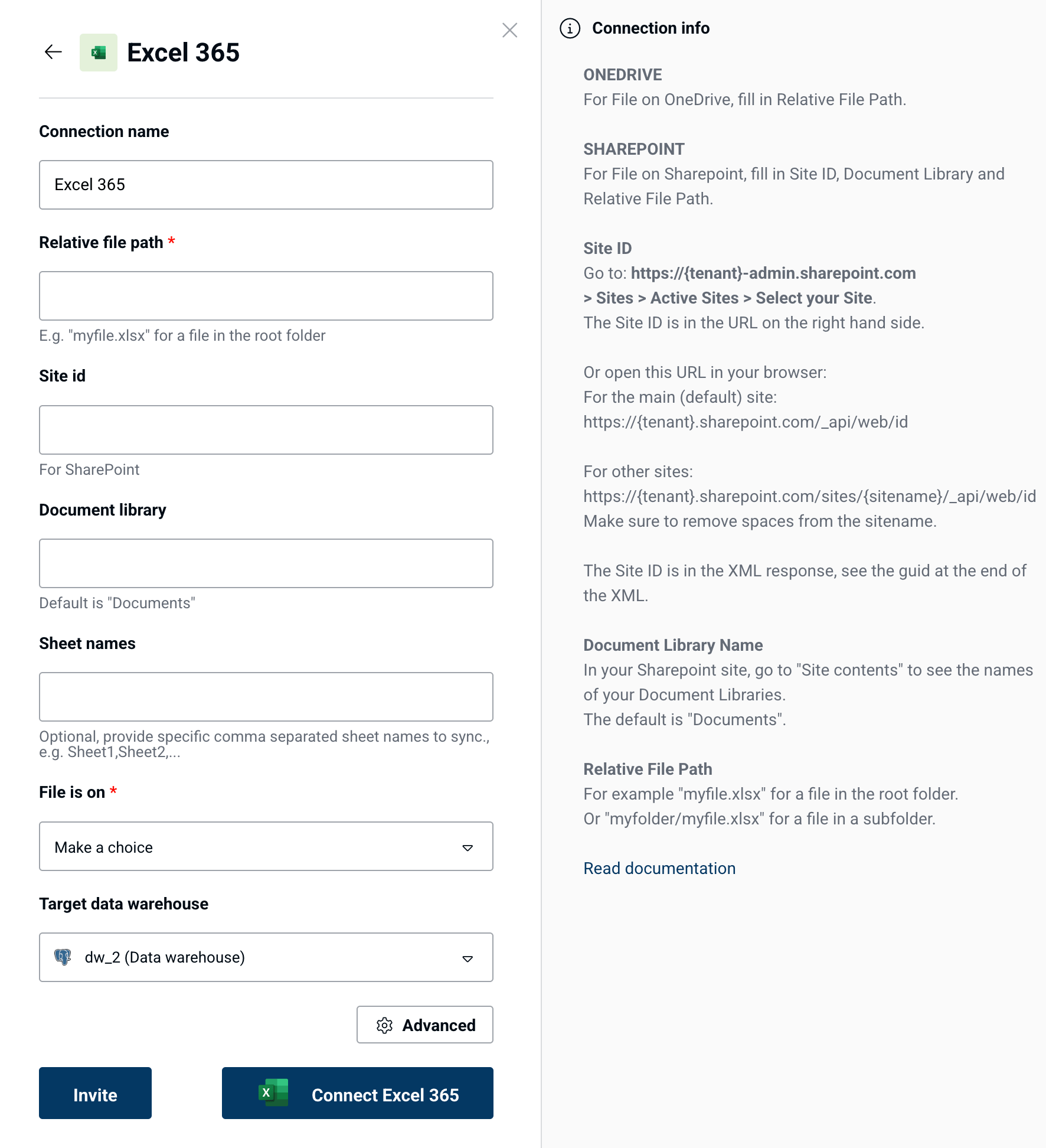

Connect

In peliqan, go to Connections, click on Add new. Find “Excel 365” in the list and select it. Click on the Connect button. This will open Microsoft Excel and allow you to authorize access for Peliqan. Once the authorization is done, you will return to Peliqan.


How to find your Site id (Sharepoint)

Using Sharepoint admin

Go to: https://{tenant}-admin.sharepoint.com

Replace {tenant} with your Sharepoint subdomain.

Navigate to: Sites > Active Sites > Select your Site.

The Site ID is in the URL on the right hand side.

Using an _api URL

Open this URL in your browser:

  • For the main (default) site: https://{tenant}.sharepoint.com/_api/web/id
  • For other sites: https://{tenant}.sharepoint.com/sites/{sitename}/_api/web/id

Make sure to remove spaces from the site name when inserting {sitename}.

The Site ID is in the XML response, see the guid at the end of the XML.

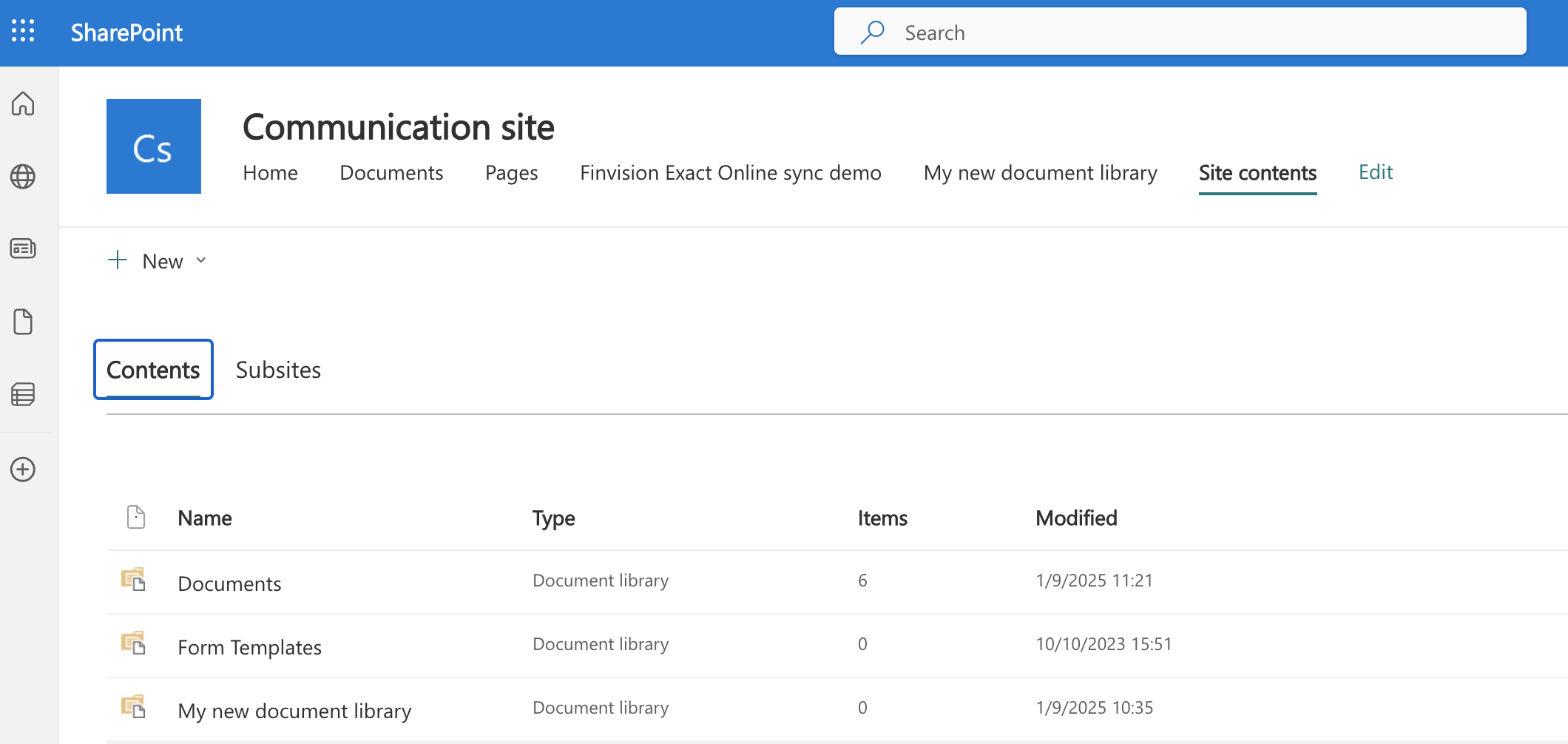

Document Library Name

In your Sharepoint site, go to "Site contents" to see the names of your Document Libraries.

The default is "Documents".


Relative File Path

For example "myfile.xlsx" for a file in the root folder.

Or "myfolder/myfile.xlsx" for a file in a subfolder.

Explore & Combine

Wait a few minutes for the data to start syncing. Now you can view your Microsoft Excel data in tables in Peliqan’s built-in data warehouse (or in your own DWH if you connected e.g. SQL Server, Snowflake, Redshift or BigQuery).

Select “Explore” in the left navigation pane, expand “Data warehouse” in the left tree and click on Excel. All tables from Excel will now be shown.


You can explore the data in the gridview, and you can write SQL queries to transform the data and to combine the data from Microsoft Excel with data from other sources.

Activate

Here are example low-code Python scripts in Peliqan to work with Microsoft Excel 365.

Use one of the following connectors:

  • Excel 365
  • Excel 365 Writeback
  • Sharepoint Excel 365 Writeback
  • Sharepoint Excel 365 External Tenant

Update rows

excel_writeback_sharepoint_api = pq.connect("Microsoft Excel 365 Writeback")

data = [
  ["abc", "def"],
  [123, 456]
]

result = excel_writeback_sharepoint_api.update("rows",
	worksheet_name = "Sheet1",
	start_cell = "A1",
	end_cell = "B2",
	values = data)

st.json(result)

Update rows using drive_id and drive_item_id

Example using a drive_id and a drive_item_id:

Note that each Document Library from your Sharepoint site has one drive_id.

The default Document Library is named “Documents”. When you add new Document Libraries, new drive ids will be created.

result_get_drive_ids = excel_writeback_sharepoint_api.get('drive_id')
drive_id = result_get_drive_ids["value"][0]["id"]

file = {
    'drive_id': drive_id,
    'relative_file_path': "Excel_test_file.xlsx",
}
result = excel_writeback_sharepoint_api.get('drive_item_id', file)
drive_item_id = result["id"]

rows = {
    'drive_id': drive_id,
    'drive_item_id': drive_item_id,
    'sheet_name': "Sheet1",
    'start_cell': "A1",
    'end_cell': "B2",
    'values': [['abc', 'def'], [123, 456]],
}

# Make sure to use "" instead of blank/no values
result = excel_writeback_sharepoint_api.update('rows', rows)
st.json(result)

Full example syncing a Peliqan table to Excel sheet on Sharepoint

This example script will read a Peliqan table as a dataframe DF, prepare the data for Excel and calculate the end cell:

import numpy as np

excel_writeback_sharepoint_api = pq.connect('Sharepoint Excel 365 Writeback')

def int_to_excel_colindex(i):
  s = 1
  l = ''
  while i > 25 + s:
    l += chr(65 + int((i-s)/26) - 1)
    i = i - (int((i-s)/26))*26
  l += chr(65 - s + (int(i)))
  return l

def cast_df(df):
  df = df.fillna(np.nan).replace([np.nan], [None])
  for c in df.columns.tolist():
    col_type = str(df.dtypes[c]).lower()
    if col_type[:8]=='datetime':
      df[c] = df[c].dt.strftime('%Y-%m-%d')
    elif col_type[:6]=="object":
      df[c] = df[c].astype(str)
  return df

dbconn = pq.dbconnect(pq.DW_NAME)
df = dbconn.fetch(pq.DW_NAME, 'chargebee', 'customers', df=True)

df = cast_df(df)

rows = df.values.tolist()
column_names = df.columns.tolist()
rows_with_header = [column_names] + rows

end_col = int_to_excel_colindex(len(column_names))
end_row = len(rows) + 1
end_cell = end_col + str(end_row)

result = excel_writeback_sharepoint_api.update("rows",
  sheet_name = "Sheet1",
  start_cell = "A1",
  end_cell = end_cell,
  values = rows_with_header)

st.write(result)

Read the data of a sheet

Example to get data from sheets of the file that was entered when adding the connection under “My Connections”:

excel_api = pq.connect('Microsoft Excel 365') # Connection is linked to one Excel file

# Get full sheet
result = excel_api.get('worksheet_values', sheet_name = "Sheet1")
st.json(result)

# Get range on sheet
result = excel_api.get('worksheet_range_values', range = "A1:C4", sheet_name = "Sheet2")
st.json(result)

Read the data of any Excel file into a dataframe

import pandas as pd
import base64

# How to find the drive_id:
# See first part of the file_id (before "!") or copy "cid" from the OneDrive URL in your browser
drive_id = "2fe749a6f54bc7fb"

# How to find the item_id:
# See "id" or "resid" in the URL of the Excel file in your browser
item_id = "2fe749a6f54bc7fb!745"

excel_api = pq.connect('Microsoft Excel 365')

file_content_base64 = excel_api.get('worksheet_content',
		worksheet_drive_id = drive_id,
    worksheet_drive_item_id =item_id)

file_content = base64.b64decode(file_content_base64['base64'])
df = pd.read_excel(file_content)
st.dataframe(df)

Upload an Excel file in Peliqan and store in a table

See:

Manual file uploadsManual file uploads

Tips & Trick

Convert a column number into the Excel column name (e.g. column 27 is AA):

def int_to_col_name(n):
    col_str = ""
    while n > 0:
        n, remainder = divmod(n - 1, 26)
        col_str = chr(65 + remainder) + col_str
    return col_str
